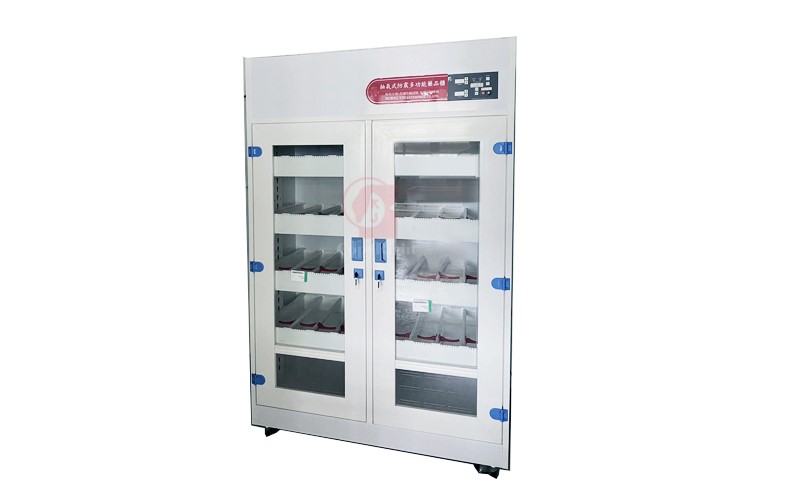

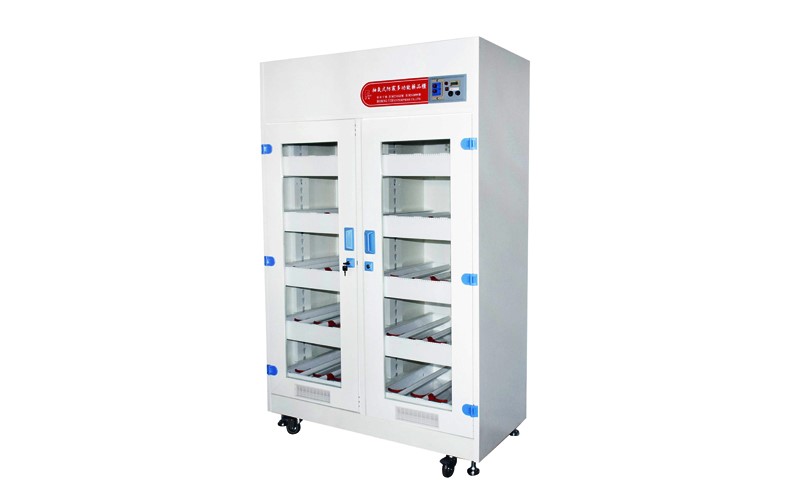

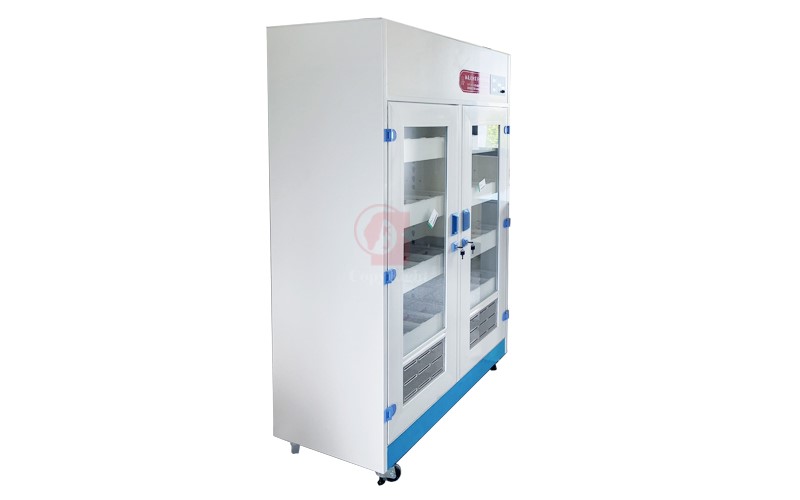

PVC防震多功能藥品櫃(抽氣式) (編號:A5-041-14)

*詳細規格與圖示歡迎來訊洽詢

*此為抽氣式規格，需另確認放置地點之排氣管安裝位置-管線費用另計*

1.本體材質採白色PVC硬殼發泡板承製，抗酸鹼化學藥品、耐衝擊、不腐蝕、不生銹
2.櫃體尺寸：1200×600×1800㎜（±5㎜）。
3.PVC抽排風機
4.特色：
◎短時程定時控制
◎強制啟動控制
◎耗材使用累積計時控制
◎電源ON/OFF開關 、啟動開關。
◎停止/啟動運轉指示燈。
◎吸附速率快、吸附容量大之活性碳過濾網
◎盛盒可調整高低及內部防震推桿可依藥瓶尺寸調整間距
◎拉出式防漏盛盒
◎內部構造南亞工業用PVC硬質塑膠板製
◎拉門為一體成型PVC組合式門框，內嵌強化安全玻璃
◎門鎖
◎防腐蝕鉸鍊。
◎支撐型活動腳輪

Earthquake-Resistant Multifunctional Chemical Storage Cabinet
1. Cabinet Body Material:
The cabinet is constructed using white rigid PVC Foam Board with a thickness of 12mm ~18mm .
The material is resistant to strong acids, alkalis, and chemicals. It is impact-resistant, corrosion-resistant, rust-proof, and fire-retardant. It does not support combustion under normal usage conditions, ensuring enhanced fire safety.
*A certified third-party test report (Refer to UL 94 (2013) Tests for Flammability of Plastic Materials for Parts in Devices and Appliances) will be provided will be provided upon delivery
2. Cabinet Dimensions:
1200 × 600 × 1800 mm (±5 mm)
3. Integrated Corrosion-Resistant Ventilation Fans (x2):
• Airflow: 35.7 CFM
• Operating Noise Level: Approx. 60 dB
• Power Consumption: 19W
• Current: 0.197A
• Power Supply: 110V, 60Hz
• Equipped with overheat protection and automatic shut-off mechanism
(A certified third-party airflow performance test report indicating 35.7 CFM must be submitted upon delivery.)
4. Control Panel Functions:
• Short-Cycle Timer: Allows preset timing for fan activation and shutdown, with timing displayed on a 7-segment LED display (unit: minutes).
• Forced Start Control: During an inactive period, pressing the manual start button will activate the fan according to previously set parameters and then return to the original schedule.
• Cumulative Timer for Consumable Usage: Tracks total operational time via 7-segment display.
• Power ON/OFF Switch and Start Button
• Operation Indicator Lights: Start/Stop status indicators
• Power Supply: 110V
5. Activated Carbon Filters:
Two cylindrical activated carbon filters with high surface area, fast adsorption rate, and large adsorption capacity. Housing made of one-piece molded PVC.
• Filter Dimensions: Diameter 20 cm, Thickness 10 cm
6. Internal Structure & Functional Design:
• Adjustable Chemical Reagent Trays: Height-adjustable trays with shock-absorbing push rods. The spacing can be adjusted according to the size of chemical bottles.
• Pull-Out Spill-Containment Trays:
o Material: Made from 5mm thick industrial-grade rigid PVC boards manufactured by Nan Ya Plastics. Mechanically processed and heat-welded.
(Factory material inspection report from Nan Ya must be submitted will be provided upon delivery .)
o Tray Quantity: 8 units, each with a safe load capacity of 30 kg
o Red Restraining Rods: 32 rods securely hold chemical bottles in place using forward pressure in conjunction with white divider rods.
o White Divider Rods: 24 adjustable rods allow lateral positioning based on bottle size, providing anti-tilt support in all directions.
• Adjustable Height Rails: The side rails contain adjustment holes that also function as internal air circulation vents.
• ㄈ-Shaped Tray Mounting Brackets: Inserted into the height-adjustment rails for easy repositioning of reagent trays. Includes locking latches to prevent trays from falling.
7. Pull-out Doors:
Made from 20mm thick one-piece molded PVC door frames with 5mm thick embedded tempered safety glass.
8. Door Handles:
Impact-resistant handles made from molded ABS plastic.
9. Door Locks:
Equipped with rotary latch locks.
10. Hinges:
One-piece molded corrosion-resistant PP (polypropylene) hinges.
11. Supportive Mobile Casters:
Caster includes an integrated leveling foot for positioning stability. Wheels are made of durable PP plastic.
※ All red restraining rods, white divider rods, U-shaped tray brackets, and height-adjustment rails are manufactured using one-piece molding.
※ The cabinet has passed seismic performance testing conducted by a national academic institution. The test report confirms the shock-absorbing structure meets actual specifications for the chemical reagent trays inside the cabinet.
