【標準配備】

EEPROM 儲存模組  *1

*商品以全照圖為準

【商品規格】

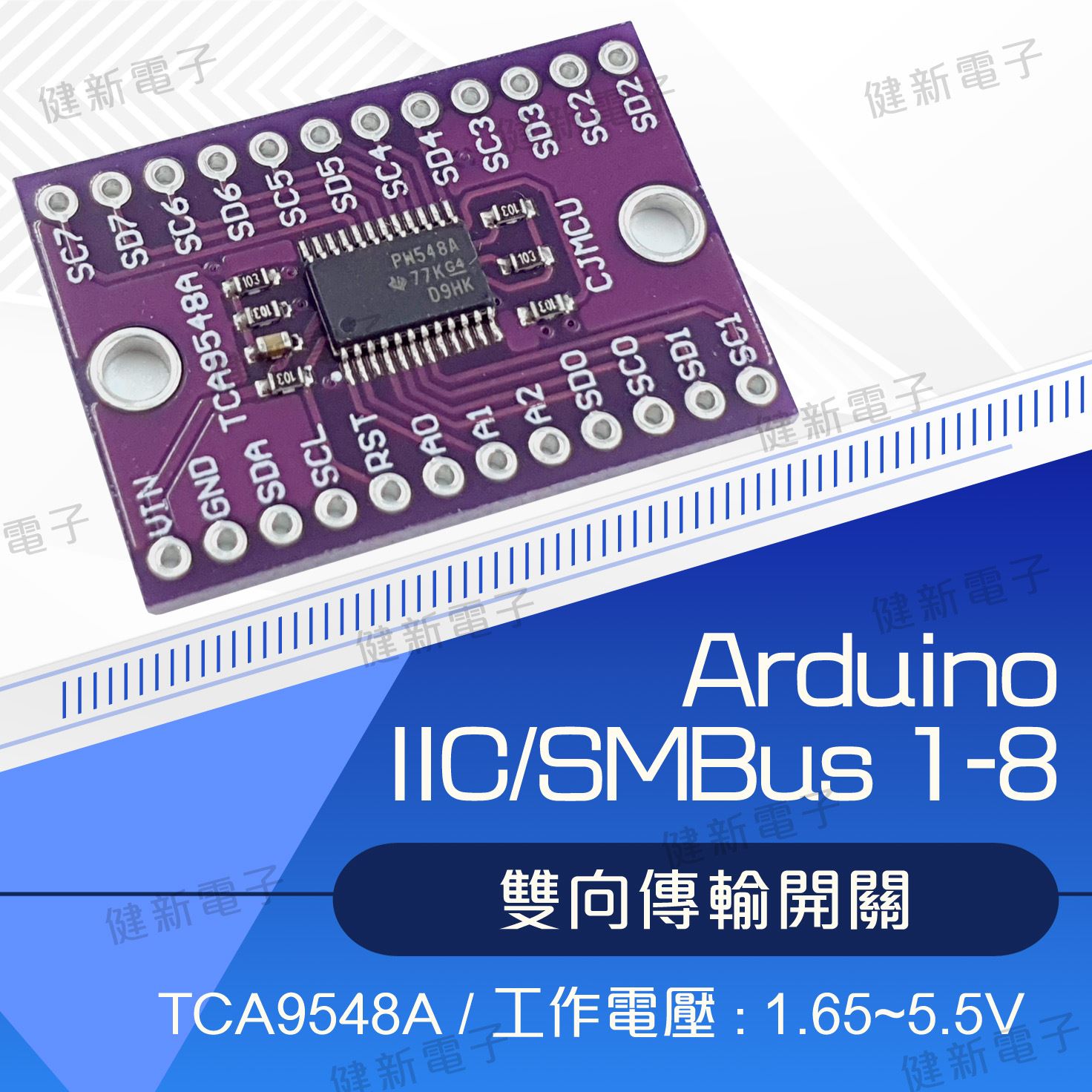

1-to-8 Bidirectional translating switches
I2C Bus and SMBus compatible
Active-low reset input
Three address pins, allowing up to eight TCA9548A devices on the I2C bus
Channel selection through an I2C Bus, in any combination
Power up with all switch channels deselected
Low RON switches
Allows voltage-level translation between 1.8-V, 2.5-V, 3.3-V, and 5-V buses
No glitch on power up
Supports hot insertion
Low standby current
Operating power-supply voltage range of
1.65 V to 5.5 V
5-V Tolerant inputs
0- to 400-kHz Clock frequency
Latch-up performance exceeds 100 mA Per JESD 78, class II
ESD Protection exceeds JESD 22
±2000-V Human-body model (A114-A)
200-V Machine model (A115-A)
±1000-V Charged-device model (C101)

---------------------------------------------------------
