【標準配備】

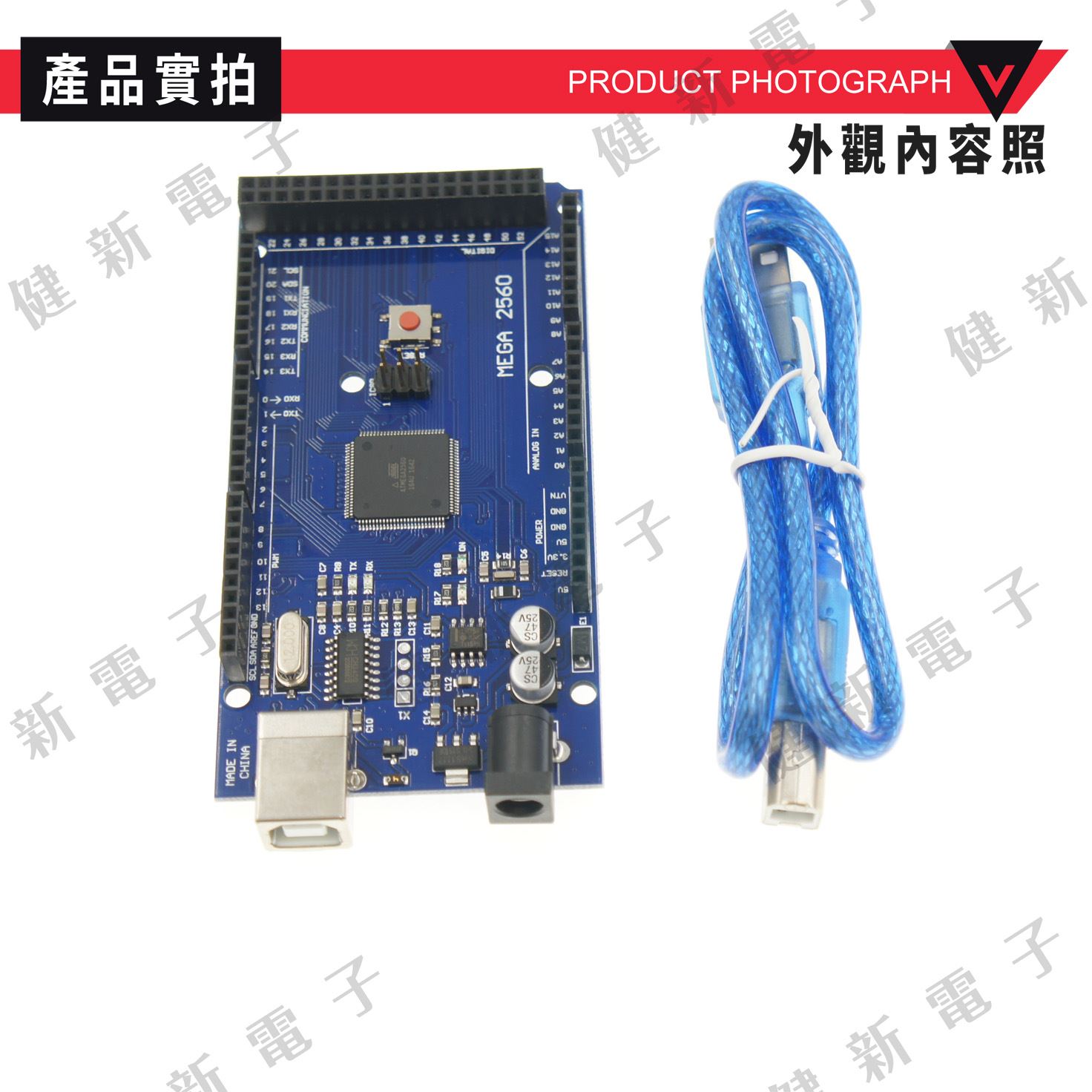

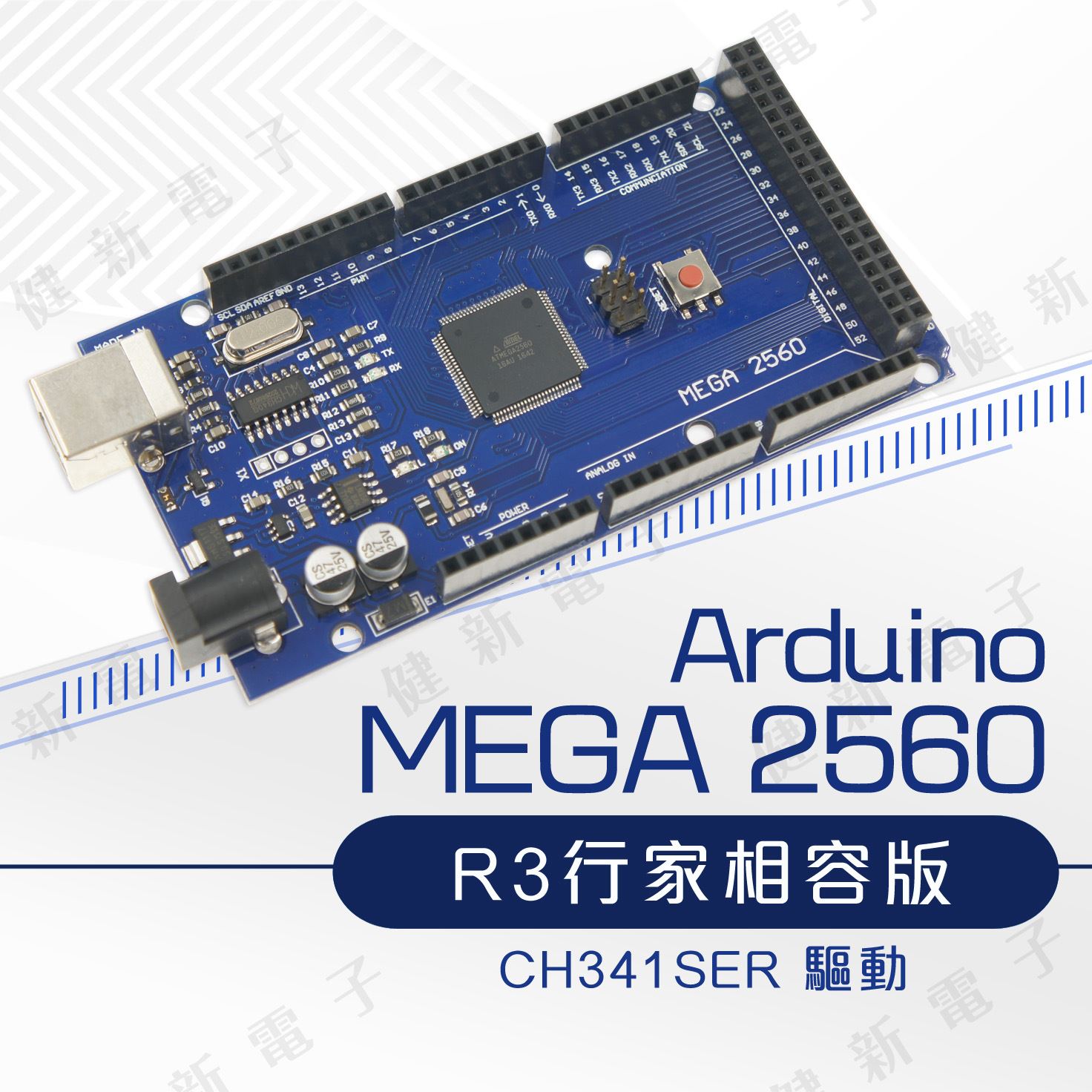

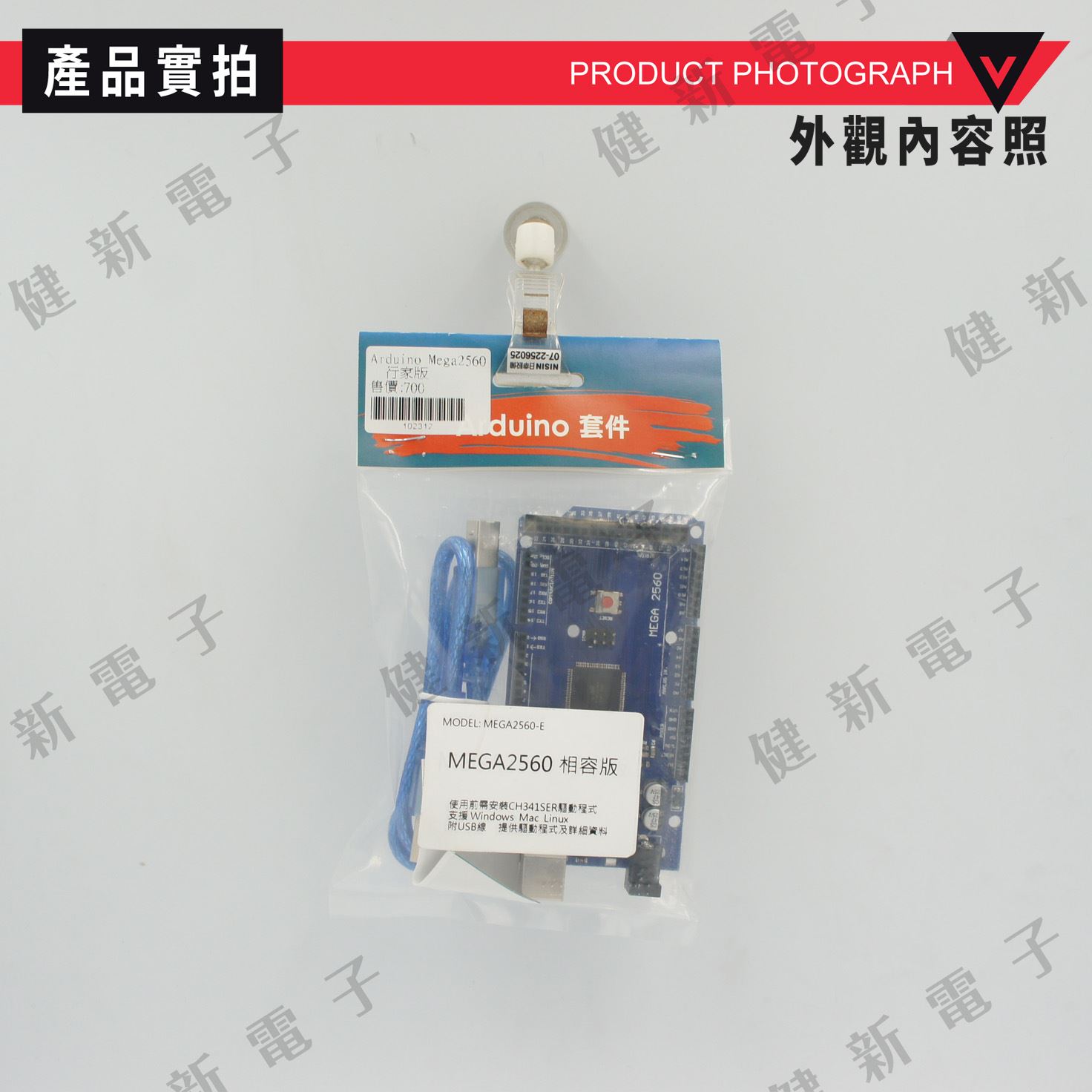

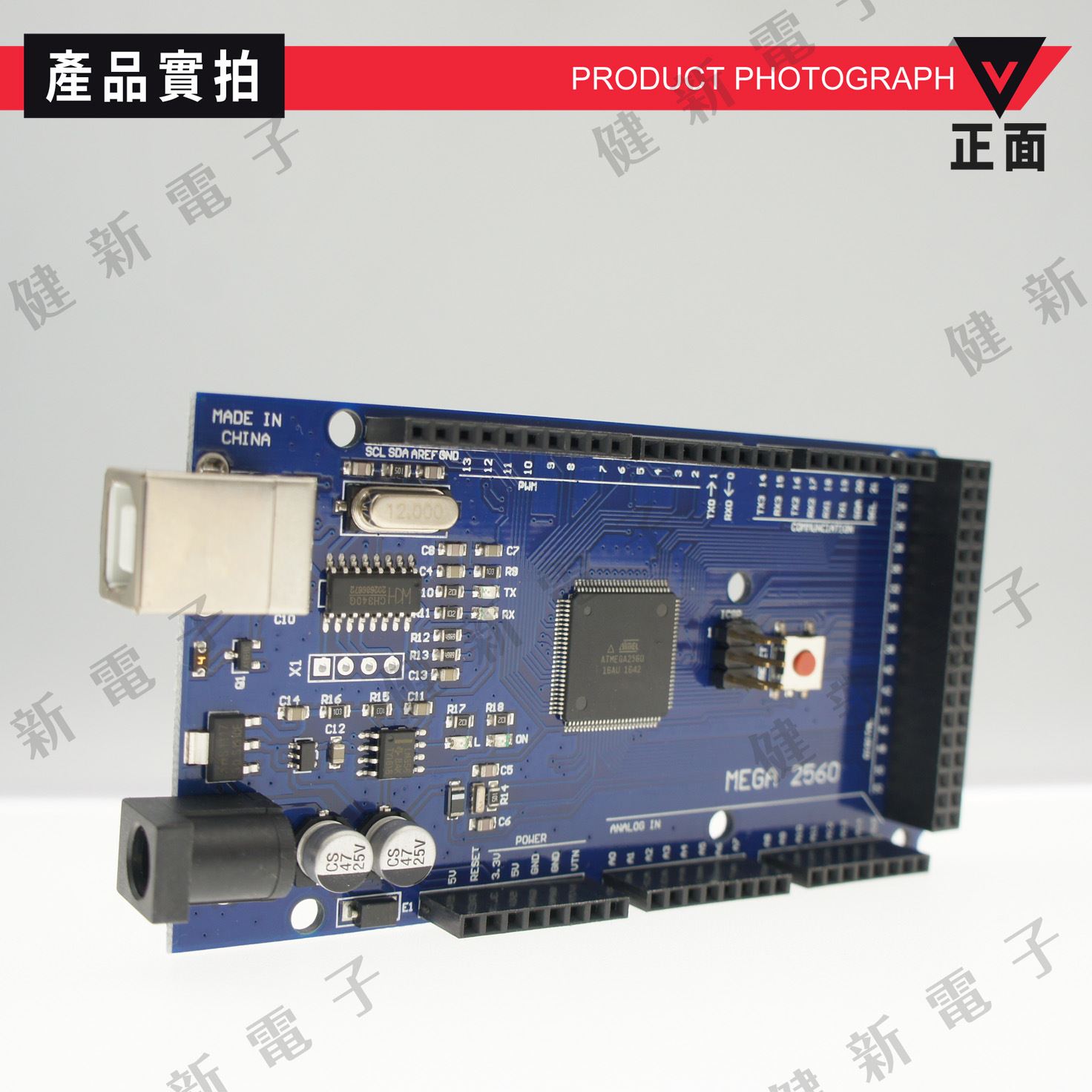

Arduino MEGA 2560 R3 *1

*商品以全照圖為準

【商品規格】

Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 20mA
DC Current for 3.3V Pin: 50mA
Flash Memory: 256kB of which 8kB used by bootloader
SRAM: 8kB
EEPROM: 4kB
Clock Speed: 16MHz
Dimensions: 102mm x 53mm

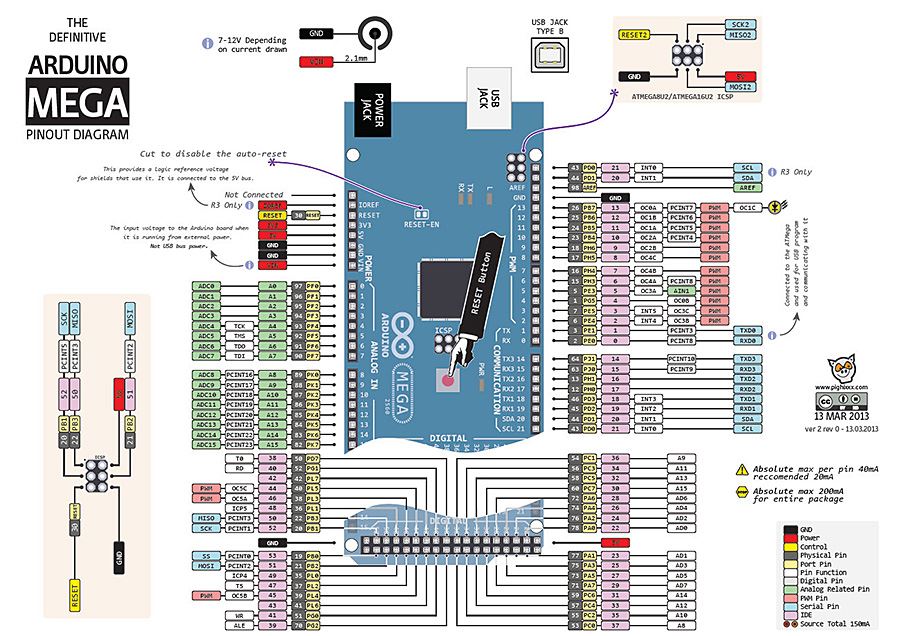

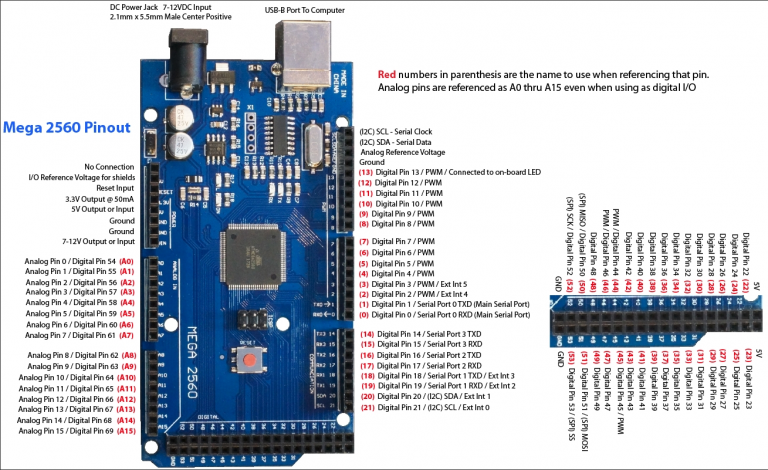

 請看上圖

---------------------------------------------------------
